SPECIFICATIONS:

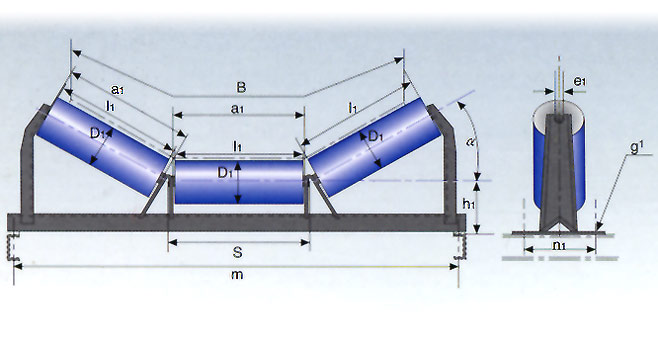

Synthetic Fiber Carry Roller unit
¡@
MODEL

Size

g`

B
£\ D1 I1 a1 h1 m n1 e1

s
20 30
KFR-400





20









30











  		89.1 145 153 +2.4
0 		125 640 ¡Ó 1.6 140 14.5 ¡Ó 0.5 185 185 M12

18.5 ¡Ó 0.7

400
KFR-450 89.1 165 173 +2.4
0 		125 690 ¡Ó 1.6 140 205 205 450
KFR-500 89.1 180 188 +2.4
0 		125 740 ¡Ó 1.6 140 220 220 500
KFR-600 89.1 210 218 +2.4
0 		140 840 ¡Ó 1.6 150 250 250 600
KFR-650 89.1 225 233 +2.4
0 		140 890 ¡Ó 1.6 150 265 265 650
KFR-750 114.3 265 273 +2.4
0 		150 1040 ¡Ó 2 160 305 315 750
KFR-800 114.3 275 283 +2.4
0 		150 1090 ¡Ó 2 160 315 325 800
KFR-900 114.3 315 323 +2.4
0 		150 1190 ¡Ó 2 160 355 365 900
CF-1000 139.8 350 360 +4
0 		180 1290 ¡Ó 2 180 18.5 ¡Ó 0.7 400 410 1000
CF-1050 139.8 370 380 +4
0 		180 1340 ¡Ó 2 180 420 430 1050
CF-1200 139.8 420 430 +4
0 		180 1490 ¡Ó 2 180 470 480 1200
CF-1400 152 500 510 +4
0 		250 1730 ¡Ó 2.5 280 22.9 ¡Ó 0.7 555 570  M16

¡@

 1400
CF-1600 152 580 590 +4
0 		250 1930 ¡Ó 2.5 280 635 650 1600
CF-1800 152 650 660 +4
0 		280 2220 ¡Ó 2.5 330 25.5 ¡Ó 0.7 705 720 1800
CF-2000 152 730 740 +4
0 		280 2420 ¡Ó 2.5 330 785 800 2000

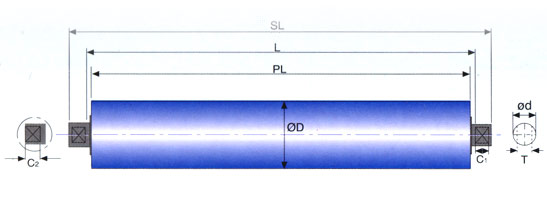

 Synthetic Fiber Carry Roller

MODEL Specification Belt Width D PL L SL d C1 C2 T Bearing
KCR-0400

Ø89.1x145x175

400

 89.1 145 153 175 17/20 8 11 11/14 6203/6204
KCR-0450

Ø89.1x165x195

450

 89.1 165 173 195 17/20 8 11 11/14 6203/6204
KCR-0500

Ø89.1x180x210

500

 89.1 180 188 210 17/20 8 11 11/14 6203/6204
KCR-0600

Ø89.1x210x240

600

 89.1 210 218 240 17/20 8 11 11/14 6203/6204
KCR-0650

Ø89.1x225x255

650

 89.1 225 233 255 17/20 8 11 11/14 6203/6204
KCR-0750

Ø114.3x265x295

750

 114.3 264 273 295 20/25 8 11 14/18 6204/6205
KCR-0800

Ø114.3x275x305

800

 114.3 275 283 305 20/25 8 11 14/18 6204/6205
KCR-0900

Ø114.3x315x345

900

 114.3 315 323 345 20/25 8 11 14/18 6204/6205
KCR-1000

Ø139.8x350x390

1000

 139.8 350 360 390 25/30 11.2 15 18/22.4 6205/6206
KCR-1050

Ø139.8x370x410

1050

 139.8 370 380 410 25/30 11.2 15 18/22.4 6205/6206
KCR-1200

Ø139.8x420x460

1200

 139.8 420 430 460 25/30 11.2 15 18/22.4 6205/6206
KCR-1400

Ø152.4x500x540

1400

 152.4 500 510 540 30/35 11.2 15 22.4/25 6206/6207
KCR-1600

Ø152.4x580x620

1600

 152.4 580 590 620 30/35 11.2 15 22.4/25 6206/6207
KCR-1800

Ø152.4x650x690

1800

 152.4 650 660 690 30/35 11.2 15 22.4/25 6206/6207
KCR-2000

Ø152.4x730x770

2000

 152.4 730 740 770 30/35 11.2 15 22.4/25 6206/6207


¡@

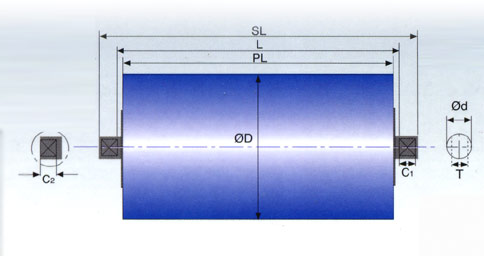

Synthetic Fiber Return Roller
¡@

MODEL Specification Belt Width D PL L SL d C1 C2 T Bearing
KRR0400

Ø 89.1x460x505

 400 89.1 460 480 505 17/20 8 12.5 11/14 6203/6204
KRR0450

Ø 89.1x510x555

 450 89.1 510 530 555 17/20 8 12.5 11/14 6203/6204
KRR0500

Ø 89.1x560x605

 500 89.1 560 580 605 17/20 8 12.5 11/14 6203/6204
KRR0600

Ø 89.1x660x705

 600 89.1 660 680 705 17/20 8 12.5 11/14 6203/6204
KRR0650

Ø 89.1x710x755

 650 89.1 710 730 755 17/20 8 12.5 11/14 6203/6204
KRR0750

Ø114.3x850x905

 750 114.3 850 880 905 20/25 8 12.5 14/18 6204/6205
KRR0800

Ø 114.3x900x955

 800 114.3 900 930 955 20/25 8 12.5 14/18 6204/6205
KRR0900

Ø 114.3x1000x1055

 900 114.3 1000 1030 1055 20/25 8 12.5 14/18 6204/6205
KRR1000

Ø139.8x1100x1165

 1000 139.8 1100 1130 1165 20/25 11.2 17.5 18/22.4 6205/6206
KRR1050

Ø 139.8x1150x1215

 1050 139.8 1150 1180 1215 25/30 11.2 17.5 18/22.4 6205/6206
KRR1200

Ø 139.8x1300x1365

 1200 139.8 1300 1330 1365 25/30 11.2 17.5 18/22.4 6205/6206
KRR1400

Ø152.4x1550x1585

 1400 152.4 1530 1550 1585 30/35 11.2 17.5 22.4/25 6206/6207
KRR1600

Ø152.4x1730x1785

 1600 152.4 1730 1750 1785 30/35 11.2 17.5 22.4/25 6206/6207
KRR1800

Ø152.4x2000x2075

 1800 152.4 2000 2040 2075 30/35 11.2 17.5 22.4/25 6206/6207
KRR2000

Ø152.4x2200x2275

 2000 152.4 2200 2240 2275 30/35 11.2 17.5 22.4/25 6206/6207
¡@





¡@
